COT-01270C-029-10-S3 - Datasheet

MBA

Category Information

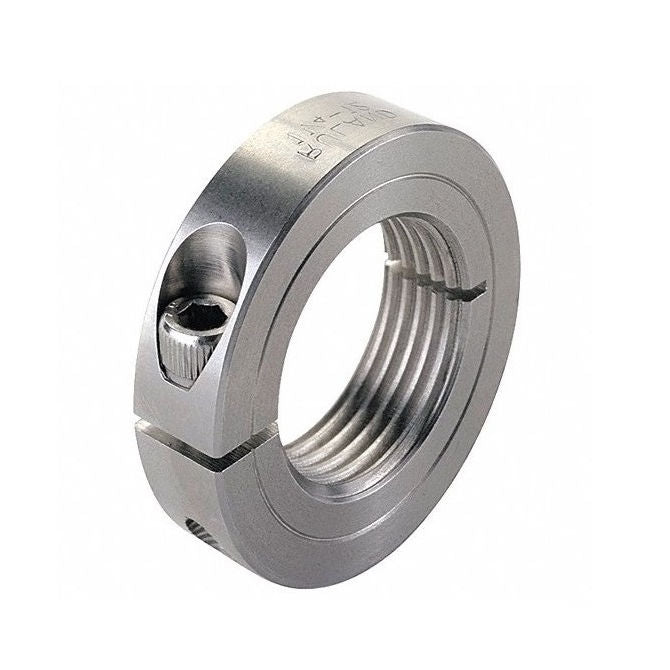

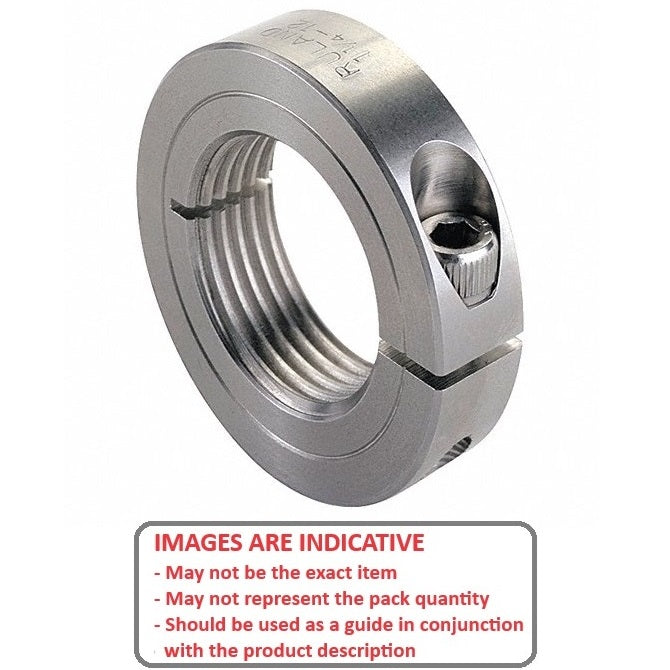

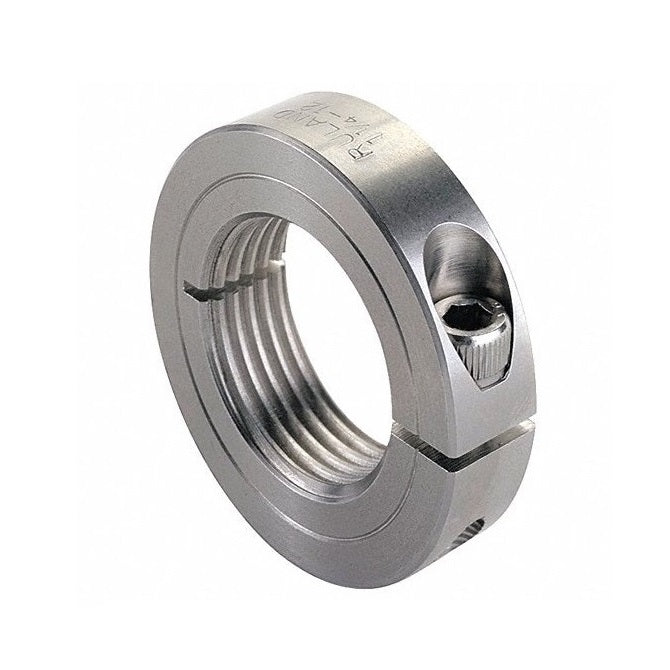

Collars - Threaded - Clamp Type - Stainless Steel

Stainless Steel Clamp Type Threaded Collars. Offer full radial holding power without marring the shaft.

  • Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round threaded shaft to hold other parts in place or to act as a mechanical stop.
  • Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.

Product Data

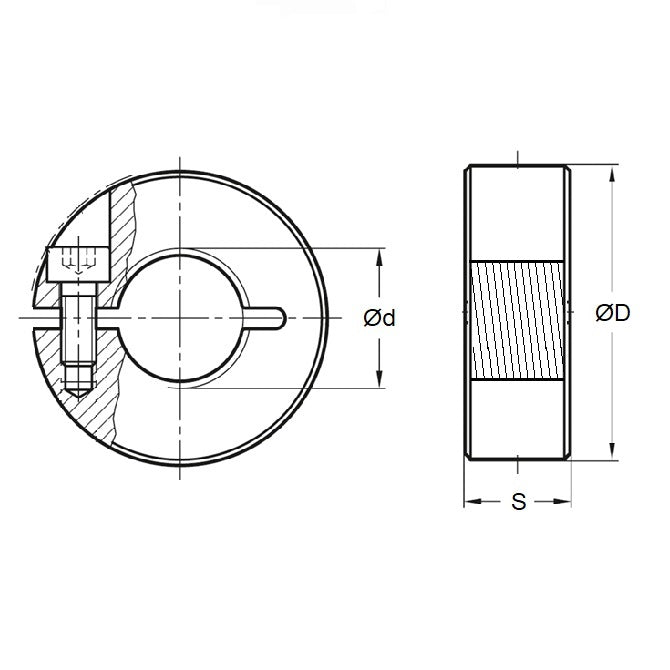

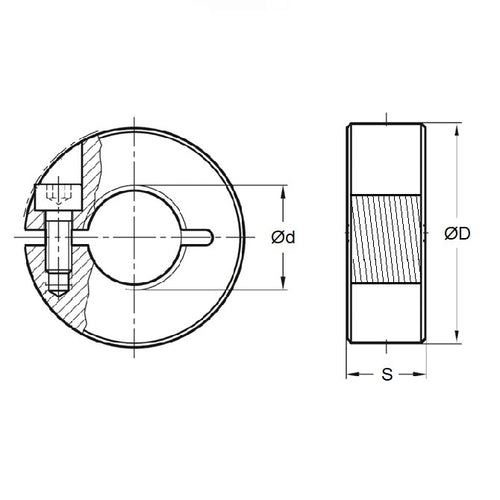

  • Suitable Thread (B) : 1/2-13 UNC (12.7mm)
  • Outside Diameter (A) 28.575 mm
  • Width (C) 10.319 mm
  • Clamping Screw Size 8-32 UNC (4.17mm)
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 6438K51
  • Reid Tool® CTC-214SS
  • CTC214SS
